Veeam Backup & Replication stands as one of the most powerful, reliable, and widely adopted enterprise data protection and disaster recovery solutions in the modern IT landscape. Designed primarily for virtualized environments including Microsoft Hyper-V, VMware vSphere, and increasingly cloud workloads, Veeam delivers fast, flexible, and application-consistent backups with exceptional recovery capabilities. Whether you are managing a small business infrastructure or a large-scale enterprise data center, Veeam provides the tools necessary to achieve low Recovery Time Objectives (RTO) and Recovery Point Objectives (RPO) while protecting against ransomware, hardware failures, and human errors.
In this detailed 2000+ words guide, we will explore the complete Veeam Backup & Replication interface, explain its working mechanism in depth, walk through the backup job creation wizard step-by-step using real screenshots, discuss pros and cons, compare it with competing tools, and share industry best practices.
Veeam Backup Works
Veeam Backup & Replication operates on a modern, image-based backup architecture that fundamentally differs from traditional file-level backup methods. Instead of backing up individual files, Veeam captures the entire virtual machine (VM) or physical server at the block level using hypervisor snapshots. This process ensures application consistency and significantly reduces backup windows.
When a backup job starts, Veeam first coordinates with the hypervisor (in this case, Microsoft Hyper-V) to create a consistent snapshot of the selected virtual machines. For Hyper-V environments, it leverages Changed Block Tracking (CBT) technology, which identifies only the blocks of data that have changed since the last backup. This incremental approach dramatically improves backup speed and reduces storage consumption.
The backup proxy server plays a vital role in the data movement process. In the provided screenshots, the job uses On-host backup proxy, which means the source Hyper-V host itself processes the backup data. This method minimizes network traffic because data does not need to traverse the network to a separate proxy server. The processed data is then written to the designated Backup Repository — in this case, a NAS-based repository named “Ameritrans3CX on NAS03”.
Veeam supports multiple backup chain types:
- Forever Forward Incremental (most popular) — One full backup followed by incremental forever.
- Reverse Incremental — Maintains the latest full backup at all times.
- Synthetic Full backups — Creates full backups without touching the production environment.
During the backup process, Veeam can perform application-aware processing using Microsoft Volume Shadow Copy Service (VSS). This ensures databases like Microsoft SQL Server, Exchange, or 3CX phone systems (as seen in the Ameritrans job) are in a transactionally consistent state. Guest file system indexing further enhances recoverability by allowing users to search and restore individual files without restoring the entire VM.
After the backup completes, Veeam can automatically verify backup integrity through SureBackup jobs, which spin up VMs in an isolated environment to confirm restorability. This proactive verification is one of the strongest differentiators of Veeam in the industry.
The entire workflow is managed through a centralized, user-friendly console that provides real-time visibility into job status, storage utilization, and upcoming schedules. In production environments, administrators monitor the dashboard shown in the first screenshot to ensure all critical workloads meet compliance and business continuity requirements.
Where to Download:
You can download Veeam Backup & Replication directly from the official site:
- Veeam.com → Products → Backup & Replication (veeam.com in Bing)
Installation requires a Windows Server environment with adequate storage and network connectivity.
Pros and Cons of Veeam Backup & Replication
Here is a detailed comparison table highlighting the strengths and weaknesses of Veeam:
| Aspect | Pros | Cons |
|---|---|---|
| Ease of Use | Intuitive wizard-driven interface, excellent GUI, quick deployment | Initial repository and proxy design requires planning |
| Performance | Fast backups with CBT, deduplication, compression, and parallel processing | Performance depends heavily on underlying storage speed |
| Hyper-V Support | Outstanding native Hyper-V integration, on-host backup mode | Some advanced Hyper-V cluster features need careful configuration |
| Recovery Options | Instant VM Recovery, granular file/application item restore, SureBackup | Tape integration is good but not as strong as legacy enterprise tools |
| Ransomware Protection | Immutability, air-gapping, MFA, and hardened repositories | Requires proper configuration to achieve maximum protection |
| Cost | Competitive licensing, good value for features | Enterprise Plus features can become expensive at very large scale |
| Scalability | Excellent for mid to large enterprises, Scale-Out Backup Repository | Very massive petabyte-scale environments may need multiple repositories |
| Application Awareness | Superior application-aware processing for 100+ applications | Requires correct guest OS credentials and proper configuration |
| Reporting & Monitoring | Built-in reporting, integrates beautifully with Veeam ONE | Advanced analytics require separate Veeam ONE license |
| Community & Support | Huge user community, excellent documentation, responsive support | Learning curve for PowerShell scripting and advanced automation |
Veeam Backup & Replication Console Interface Overview

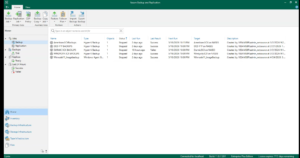

The first screenshot displays the main Home dashboard of Veeam Backup & Replication. On the left, you see the navigation pane with sections like Jobs, Backups, Disk, Replicas, and Ready. The central area lists all active backup jobs with critical columns: Name, Type, Objects, Status, Last Run, Last Result, Next Run, Target, and Description.
In the example, several jobs are configured:
- Ameritrans3CXBackups (Hyper-V Backup)
- DCD-FTP BACKUPS
- DURMIC 3CX BACKUPS (recently failed — requires immediate attention)
- WINDYCITY 3CX BACKUPS
- Winnode11_Imagebackup
This centralized visibility allows administrators to maintain strict control over backup compliance and quickly troubleshoot failed jobs.
Backup Job Creation Wizard Explained
Name and Description

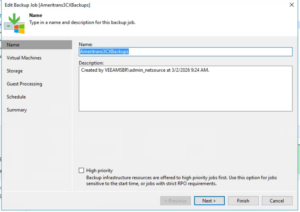

When you create or edit a backup job (as shown in the second screenshot), the first screen asks for a Name and Description.
Using a clear name like Ameritrans3CXBackups helps in quick identification. The description field automatically captures creation details (“Created by VEEAMSBR\admin_netsource at 3/2/2026”). You can also enable High Priority to ensure this job gets preference in resource allocation during busy backup windows. This is particularly useful for business-critical applications like 3CX telephony systems that require strict RPO.
Virtual Machines Selection

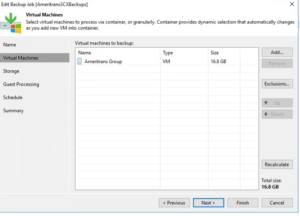

The Virtual Machines step. Here you define the scope of protection. Veeam offers powerful dynamic selection through Containers (such as folders, clusters, or custom groups). In this case, the “Ameritrans Group” container containing a 16.8 GB VM is selected.
Advantages of using containers include automatic protection of newly added VMs — reducing administrative overhead. You can add exclusions, adjust processing order, and recalculate total size on the fly. This flexibility makes Veeam highly adaptable to dynamic virtual environments.
Storage and Repository Configuration

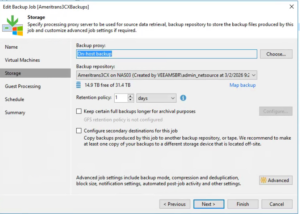

This step to covers Storage settings ,one of the most important steps for performance and retention.
- Backup Proxy: Set to “On-host backup” for optimal Hyper-V performance.
- Backup Repository: Pointing to “Ameritrans3CX on NAS03” with 14.9 TB free space.
- Retention Policy: Currently 1 day (recommended to increase based on business needs).
- Advanced Settings: Here you configure backup mode, compression level (dedupe-friendly or optimal), block size, and encryption.
Proper repository design using ReFS (Windows) or XFS with reflink (Linux) enables fast synthetic fulls and space savings through block cloning.
Guest Processing

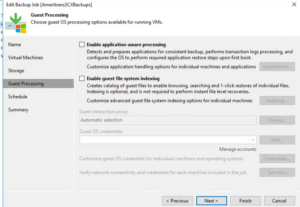

The focuses on Guest Processing — the heart of application consistency.
Enabling application-aware processing ensures databases and applications are quiesced properly during backup. Guest file system indexing allows powerful search and single-file restores. Administrators must provide valid Guest OS credentials and can test connectivity instantly. Proper configuration here prevents corrupt backups of transactional systems.
Schedule Configuration

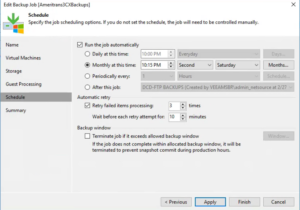

Now displays the Schedule options. The job is configured to run Monthly on the Second Saturday at 10:15 PM — a common choice for minimal production impact.
Additional powerful features include:
- Automatic retry settings (3 attempts with 10-minute intervals)
- Backup window limitation to prevent jobs from running during business hours
- Job chaining (run after another job completes)
Flexible scheduling ensures backups align with organizational policies and maintenance windows.
Summary and Finalization
The final summary screen provides a complete overview of all configured settings before saving the job. It also displays the command line for manual or scripted execution, which is extremely useful for automation and DevOps integration.
Comparison with Other Backup Tools
Veeam consistently ranks among the top choices in Gartner Magic Quadrants for data protection. Compared to Commvault, Rubrik, Cohesity, and Veritas NetBackup, Veeam offers faster deployment and better value for virtualized workloads. While Rubrik excels in simplicity and immutable storage, Veeam provides deeper hypervisor integration and more granular recovery options at a more accessible price point for many organizations.
| Tool | Strengths | Weaknesses |
|---|---|---|
| Veeam | Fast recovery, replication, hybrid cloud support | Costly, complex setup |
| Acronis Backup | Cyber protection + backup | Less flexible for hybrid workloads |
| Commvault | Enterprise automation & compliance | Expensive, steep learning curve |
| Nakivo | Lightweight, affordable | Limited enterprise features |
Advanced Features and Best Practices
To maximize Veeam’s potential:
- Implement the 3-2-1-1-0 Backup Rule religiously.
- Use Scale-Out Backup Repositories (SOBR) for future growth.
- Enable immutability on object storage repositories (S3-compatible).
- Deploy Veeam ONE for advanced monitoring, reporting, and capacity planning.
- Regularly test restores using SureBackup and Orchestrator.
- Leverage Veeam Backup for Microsoft 365 and Veeam for AWS/Azure for hybrid protection.
Security Considerations: Always use strong encryption, role-based access control (RBAC), and multi-factor authentication. Regular health checks of repositories are mandatory.
Troubleshooting Tips
- Failed jobs: Check credentials, network connectivity, and storage space.
- Slow backups: Optimize proxy placement and repository block size.
- Application processing failures: Validate guest agent and VSS writers.
Conclusion
Veeam Backup & Replication continues to set the standard for modern data protection in 2026. Its powerful yet easy-to-use interface, robust feature set, and excellent Hyper-V support make it an ideal choice for organizations serious about backup reliability and disaster recovery.
By following the detailed configuration process explained above — from naming conventions and VM selection to storage optimization, guest processing, and intelligent scheduling — administrators can build a highly resilient backup strategy that protects critical systems like the Ameritrans 3CX environment shown in the screenshots.
Whether you are new to Veeam or looking to optimize existing deployments, mastering these concepts will help you achieve faster backups, quicker recoveries, and peace of mind in an increasingly complex threat landscape.
